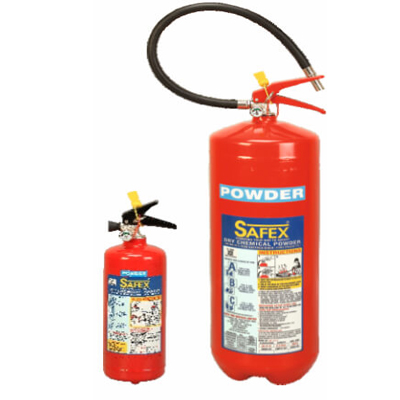

Powder Based Fire Extinguishers Dealer in Chennai
Mithraa Engineering is an Aluminium Based Fire Extinguishers dealer in Chennai providing world-class fire extinguishing supply and service.
We are powder Based Fire Extinguishers dealer in Chennai providing world-class fire extinguishing supply and service. We are providing consultation and installation assistance using trained professional employees for powder-based fire extinguisher needs. We are supplying abc stored pressure type fire extinguishers, bc / abc squeeze grip cartridge type fire extinguishers, trolley mounted bc / abc type fire extinguishers. The section has detailed specifications of products.
With so much to talk about, let’s get started! If you’d like to speak to a specialist about machine learning consulting, feel free to contact us online or give us a call at +91 9150000505.
| Fire Extinguisher Capacities | 1kg | 2kg | 4kg | 6kg | 9kg |
|---|---|---|---|---|---|
| Minimum period for which throw of jet maintained | 8 sec | 8 sec | 16 sec | 20 sec | 25 sec |
| Maximum period to discharge atleast 90% of contents | 12 sec | 16 sec | 20 sec | 25 sec | 30 sec. |
| Range of jet | 2 mtr. | 3 mtr. | 4 mtr. | 6 mtr. | 7 mtr. |
| Empty.wt.(APPROX) | 1kg. | 2.3kg. | 2.75kg. | 3.3kg. | 5.35kg. |
| Full wt.(APPROX) | 2kg. | 4.3kg. | 6.75kg. | 9.3kg. | 14.35kg. |
| Fire Rating | 1A,8B | 1A,8B | 2A,34B | 4A,55B | 6A,89B |
| Working Pressure | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 |
| Hydro Pressure | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 |
| Bursting Pressure | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 |
 |
|||||
| Fire Extinguisher Capacities | 4kg.BC | 4kg.ABC | 6kg.BC | 6kg.ABC | 9kg.BC | 9kg.ABC |
|---|---|---|---|---|---|---|
| Minimum period for which throw of jet maintained | 15 sec. | 15 sec. | 20 sec. | 20 sec. | 25 sec. | 25 sec. |
| Maximum period to discharge atleast 90% of contents | 20 sec. | 20 sec. | 25 sec. | 25 sec. | 30 sec. | 30 sec. |
| Range of jet | 4 mtr. | 4 mtr. | 4 mtr. | 4 mtr. | 6 mtr. | 6 mtr. |
| Empty.wt.(APPROX) | 4.5kg. | 4.5kg. | 5.2kg. | 5.2kg. | 7.05kg. | 7.05kg. |
| Full wt.(APPROX) | 8.5kg. | 8.5kg. | 11.2kg. | 11.2kg. | 16.05kg. | 16.05kg. |
| Fire Rating | 34B | 2A,34B | 34B | 3A,34B | 34B | 4A,34B |
| Working Pressure | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 |
| Hydro Pressure | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 |
| Bursting Pressure | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 |
 |
||||||
| Fire Extinguisher Capacities | 25kg.I/C | 25kg.O/C | 50kg. | 75kg. | |
|---|---|---|---|---|---|
| Minimum period for which throw of jet maintained | 25 sec. | 25 sec. | 40 sec. | 40 sec. | |
| Maximum period to discharge atleast 90% of contents | 30 sec. | 30 sec. | 60 sec. | 60 sec. | |
| Range of jet | 6 mtr. | 6 mtr. | 8 mtr. | 10 mtr. | |
| Empty.wt.(APPROX) | 24kg. | 30kg. | 60kg. | 75kg. | |
| Full wt.(APPROX) | 50kg. | 55kg. | 110kg. | 150kg. | |
| Working Pressure | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 | |
| Hydro Pressure | 30 KGF/CM2 | 30 KGF/CM2 | 30 KGF/CM2 | 30 KGF/CM2 | |
| Bursting Pressure | 45 KGF/CM2 | 45 KGF/CM2 | 45 KGF/CM2 | 45 KGF/CM2 | |
|
|
|||||
